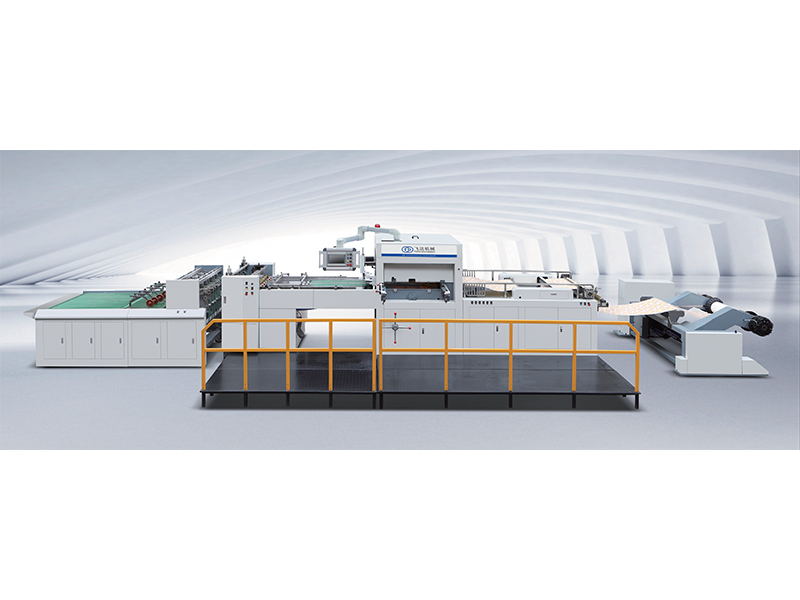

Die Cutting and Stripping Machine, FDQF Series
FDQF series die cutting machine is equipped with stripping unit to separate blanks and eliminate wastes, capable of accomplishing the entire process from web unwinding to finished product collection in one pass.
It is an ideal post-printing machine for manufacturing cardboard boxes, paper cups and other paper packaging products with features including high production efficiency, short production cycle, low labor cost.
This die cutting machine is an economical option for manufacturers in areas where labor costs are relatively high.
| Model | FDQF1100x780 | FDQF1400x780 | Customizable |
| Max. cutting area | 1050mm×750mm | 1350×750mm | |
| Cutting precision | ±0.10-0.20mm | ||
| Paper weight | 180-600g/㎡ | ||
| Machine speed | 80-120 times/min | ||
| Air pressure | 0.6Mpa | ||
| Air consumption | 0.25m³/min | ||
| Max. cutting pressure | 280T | ||
| Max. web roll diameter | 1600mm | ||
| Power | 30kW | 30kW | |
| Machine weight | 16T | 18T | |
| Machine dimensions | 12500×4500×2000mm | 12500×5000×2200mm | |
Model: FDQF1100x780
Max. paper width: 1050mm×750mm
Cutting precision: ±0.10-0.20mm
Paper weight: 180-600g/㎡
Machine speed: 80-120 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 30kW
Machine weight:16T
Machine dimensions:12500×4500×2000mm
Customizable
FDQF1400x780
Max. paper width: 1350×750mm
Cutting precision: ±0.10-0.20mm
Paper weight: 180-600g/㎡
Machine speed: 80-120 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 30kW
Machine weight:18T
Machine dimensions:12500×5000×2200mm
Customizable
Collection
Automatic blank separation, orderly collection;
Stripping
Accurate positioning for stripping, saving both labor and time;
Electrical Configurations
All electrical parts are imported from world’s original brands, in line with European Union CE standard;
Pneumatic Clutch
High quality clutch provides fast response time and high safety performance;

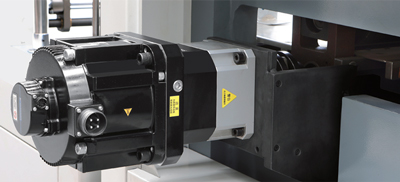

Transmission
High precision reduction gearbox guarantees the paper feeding accuracy; Servo drive offers easy operation;
Die Cutting
- Die cutting plate and die chase can be dissembled for a convenient and fast job changeover;
- Pneumatic die chase locking mechanism is adopted to ensure safer operation;
