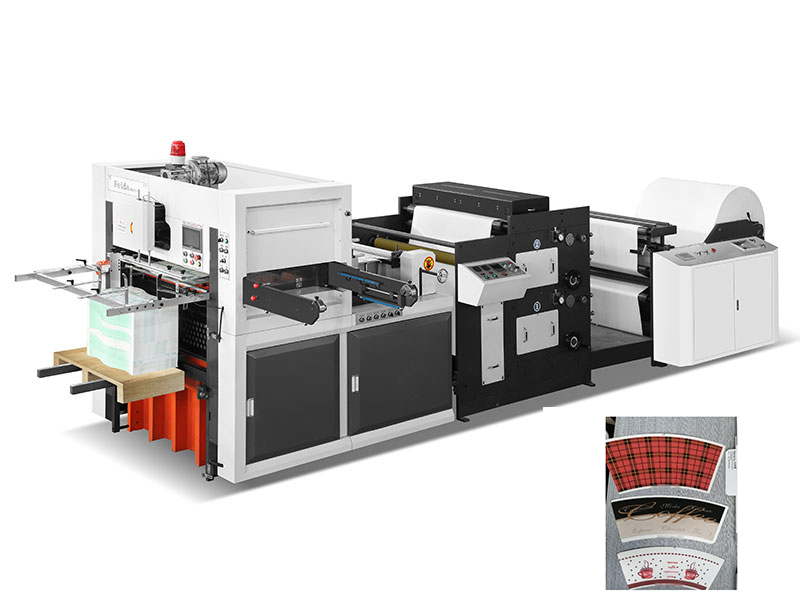

Flexo Printing and Flatbed Die Cutting Machine, FDYM Series

Flexo Printing and Flatbed Die Cutting Machine, FDYM Series

FDYM series flatbed die cutting machine combined with flexo printing unit is suitable for multi-color printing of paper in roll, featuring high accuracy of color registration.


This die cutting machine is particularly useful where precise die cutting, creasing, embossing and automatic collection are required in single pass, widely applicable to manufacture paper cups, paper bowls, paper plates and other paper packaging products.


Technical Specifications
Model 970
Max. paper width 950mm
Cutting precision ±0.20mm
Paper weight 120-400g/㎡
Machine speed 100-180times/min
Air pressure 0.5Mpa
Air consumption 0.25m³/min
Max. web roll diameter 1600mm
Number of printing units 2 - 6 Colors
Web guiding 1
Printing repeat length 10” - 22.5”
Gear pitch 1/8” (3.175mm)
Features
  • Anilox roller for precise ink transferring;
  • Unwinding tension is controlled by Japan Mitsubishi automatic tension control;
  • Each printing unit features 360-degree register control;
  • Each printing unit has a IR dryer;
  • Anilox roller is automatically cleaned by doctor blade when not in use and runs under idling speed, thus preventing the ink from being dried
  • Imported variable frequency drive unit is used for main motor operation;
  • Web guiding, printing, IR drying, punching are accomplished in one pass;
