Flatbed Die Cutting and Creasing Machine, FD Series

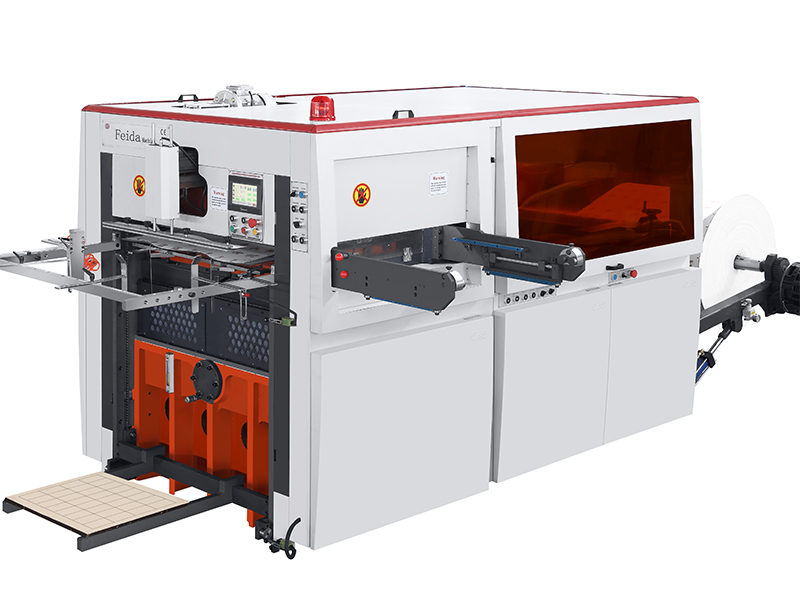

FD series fully automatic flatbed die cutting and creasing machine is typically designed to produce various paper packaging products such as pharmaceutical boxes, envelopes, paper cups, paper bowls, gift bags, etc. It combines die cutting with embossing function which can create unique patterns that are required by high grade paper products. The flatbed die cutter is capable of accomplishing roll paper creasing, die cutting and automatic collecting of finished products.
This flatbed die cutting and creasing machine features configurations of microcomputer control, servo positioning, AC drive, automatic counting unit, manual/pneumatic die chase locking mechanism, photoelectric sensor alignment system, electromagnetic clutch, centralized lubrication system, overload protection and exclusive transmission unit, providing stable running of unwinding and conveying, precise positioning and smooth finished products collection. All electrical parts and key components are imported from world’s well-known brands, ensuring that the machine installation is maintained at a stable pressure, precise position and steady movement with high safety and reliability.
| Model | 970x550(640) | FDZ1080x640 | FDZ1200x640 | FDZ1400x780 | Customizable |
| Max. paper width | 950mm | 1060mm | 1180mm | 1380mm | |
| Cutting precision | ±0.10-0.2mm | ||||
| Paper weight | 120-400g/㎡ 120-600g/㎡ |
120-600g/㎡ | |||
| Machine speed | 100-180 times/min | 80-130 times/min | |||
| Air pressure | 0.6Mpa | ||||
| Air consumption | 0.25m³/min | ||||
| Max. cutting pressure | 150T/280T | 280T | |||
| Max. web roll diameter | 1600mm | ||||
| Power | 11kW | 11kW | 14kW | 14kW | |
Model: FDZ 970x550
Max. paper width: 950mm
Cutting precision: ±0.10-0.2mm
Paper weight: 120-400g/㎡ / 120-600g/㎡
Machine speed: 100-180 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 150T
Max. web roll diameter: 1600mm
Power: 11kW
Customizable
Model: FDZ 970x640
Max. paper width: 950mm
Cutting precision: ±0.10-0.2mm
Paper weight: 120-600g/㎡
Machine speed: 100-180 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 11kW
Customizable
Model: FDZ 1080x640
Max. paper width: 1060mm
Cutting precision: ±0.10-0.2mm
Paper weight: 120-600g/㎡
Machine speed: 100-180 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 11kW
Customizable
Model: FDZ 1200x640
Max. paper width: 1180mm
Cutting precision: ±0.10-0.2mm
Paper weight: 120-600g/㎡
Machine speed: 100-180 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 14kW
Customizable
Model: FDZ 1400x780
Max. paper width: 1380mm
Cutting precision: ±0.10-0.2mm
Paper weight: 120-600g/㎡
Machine speed: 80-130 times/min
Air pressure: 0.6Mpa
Air consumption: 0.25m³/min
Max. cutting pressure: 280T
Max. web roll diameter: 1600mm
Power: 14kW
Customizable

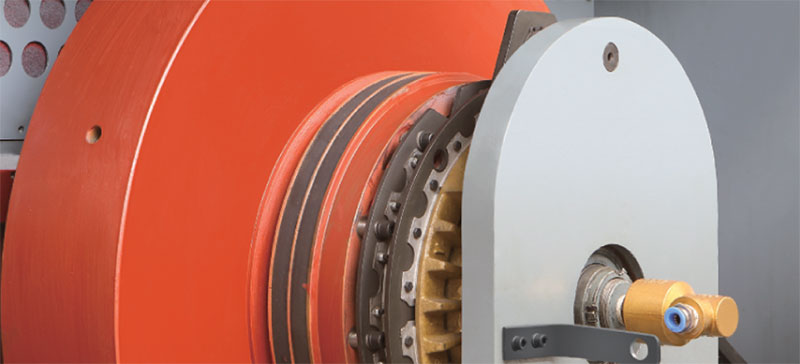

High quality clutch provides fast response time and high safety performance;

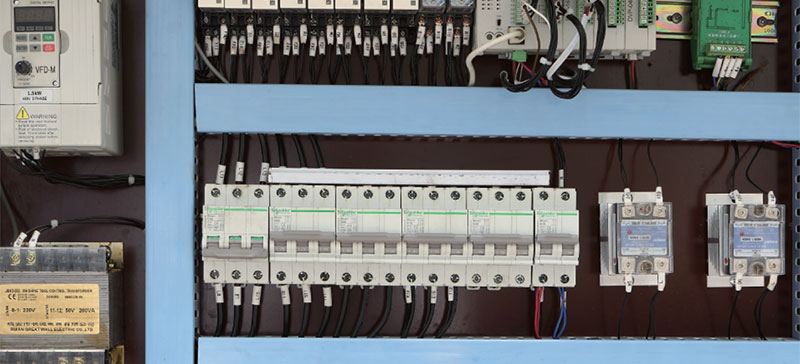

Electrical parts are all imported from world’s well-known brands, and are CE compliant.

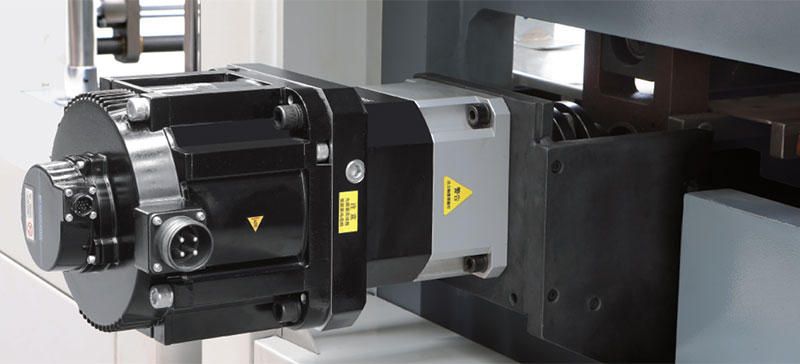

High precision reduction gearbox guarantees the paper feeding accuracy; Servo drive offers easy operation;

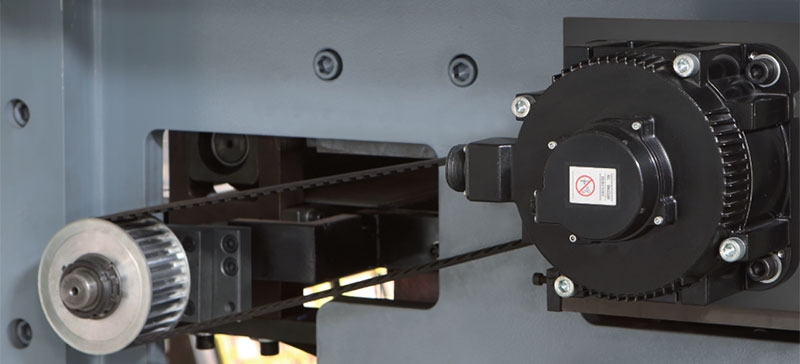

Servo driven timing belt ensures high precision;
