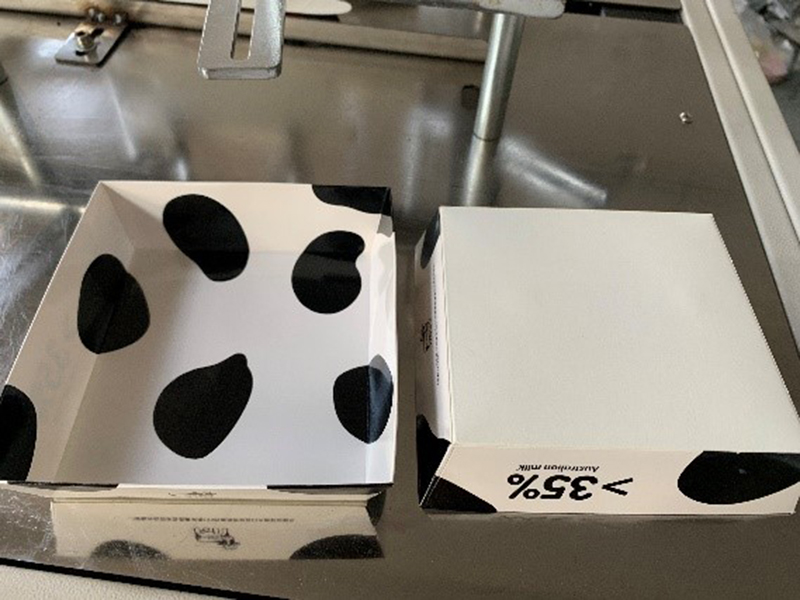

ZHX-600 paper food tray forming machine is constructed to make paper cake tray, paper loaf pan, paper bread tray, etc. With its mechanical structure, the tray forming machine conducts automatic feeding of paper blanks. Two forming modules are made of aluminum alloy and feature high precision and reliable durability, enabling the two paper food trays to be simultaneously folded and formed with a result of superior look.
Using microcomputer control allows the machine to be easily operated. All electrical parts and key components are imported from world’s well-known brands, ensuring the high quality and simple maintenance of the machine. Furthermore, this paper tray forming machine can be operated by one person, which greatly lowers your labor cost.
Paper tray size | 200mm×130mm×40mm |
Applicable material | 200-400gsm PE craft paper, PE cardboard paper |
Machine speed | 30-50pcs/min |
Power | 5kW |
Machine weight | 1000kg |
Machine dimensions | 1780mm×1860mm×1450mm |
Air supply requirements | 0.5Mpa, 0.4m3/min |
Power supply | 380V, 50Hz |
